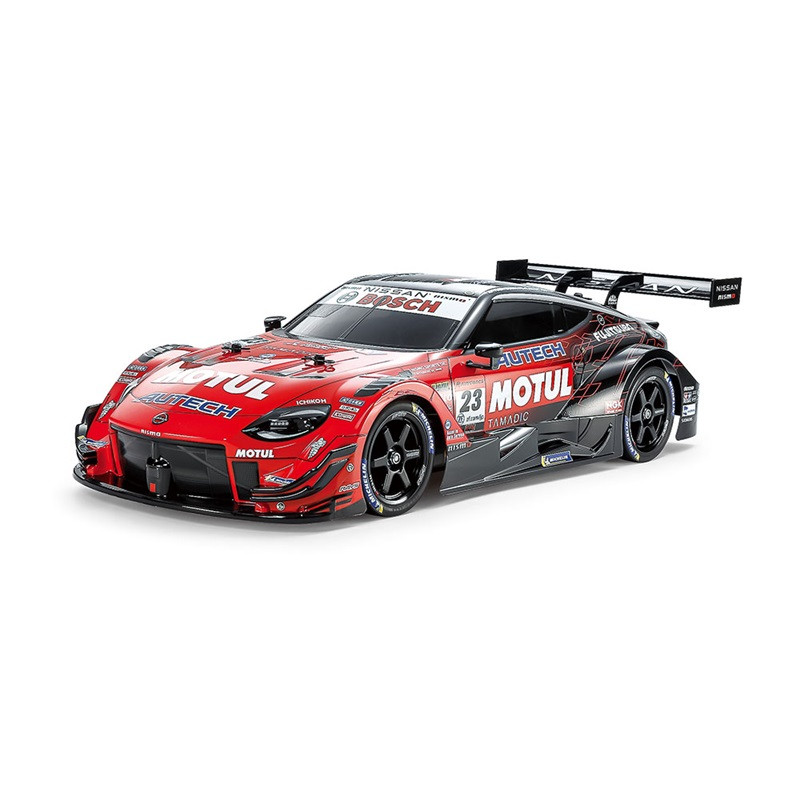

TAMIYA 58735 Motul Autech Z (TT-02)

The Motul Autech Z was raced by the NISMO team in the 2023 Super GT series. It got off to a great start, winning the opening race of 2023 in Okayama, and followed that up with creditable runner-up finishes in Round 6 and the final Round, helping the NISMO team to third place in the championship. This assembly kit R/C model recreates the complex race car with a polycarbonate body, and a sticker sheet to recreate the various sponsor logos and markings. The TT-02 chassis is an adaptable and accessible platform.

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black 6-spoke wheels use semi-pneumatic slick tires.

Specifications

★Length: 468mm, width: 188mm, height: 120mm ★Wheelbase: 257mm ★Tire width/diameter: 26/66mm (front & rear) ★Bathtub-type frame ★Shaft-driven 4WD ★Front/rear 4-bevel plastic differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Front/rear friction dampers ★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 motor.

Separately Required Items

★2-channel R/C system ★Electronic Speed Control ★Battery pack ★Charger ★Polycarbonate paint
